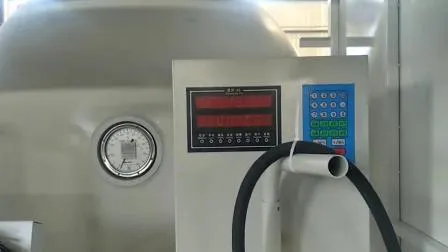

5000 Liter LPG Cylinder Filling Station Dispenser and Weight Scale
5000 Liter Lpg Cylinder Filling Station With Dispenser And Weight Scale The LPG storage tanks can be divided into fixed
Basic Info
Model NO. | Cylinder-5874 |
Condition | New |
Usage | Transport Cook Gas |
Capacity | 52cbm |
Product Name | LPG Propane Gas Storage Tank |
Transport Package | Naked or Waxed Before Shipment |
Specification | 2ton, 5tons, 10t, 20t, 25t, 30t, 40ton, 50t, 60ton |
Trademark | Weiyu |
Origin | China |
HS Code | 7301100000 |
Production Capacity | 500 Unit/Units Per Month |
Product Description
5000 Liter Lpg Cylinder Filling Station With Dispenser And Weight ScaleThe LPG storage tanks can be divided into fixed volume storage tanks and movable volume storage tanks according to the volume change of the containers.
It can add Mass Flow Meter for measuring unloading data, LPG compressor for speeding up unloading, Sun Shield for protection and connect with our management system to monitor the live data of tank's stock, unloading quantity and sales quantity.
Skid- mounted station consists of a storage tank and two pumps, Pipe section : one pump forms unloading system, another forms filling system, these two systems under fault conditions can be used temporarily. The structure of Skid-mounted stations is divided into four parts, the tank, skid body, LPG dispenser, electronic control box.
Description:
995T(5M3)LPG storage tank | ||||||
Filling gas | LPG (propane) | |||||
Design Specific Gravity | 0.42 Kg/L | |||||
capacity | 5M3 | |||||
External Dimensions (length*width*height) | 3070*1620*2200mm | |||||
Tank dimension (length*diameter) | L3070*D1600mm | |||||
tank weight (nominal) | 2030kg | |||||
max payload weight | 1995kg | |||||
tank material | Q345R | |||||
Tank body design thickness | 8.53mm | |||||
End cover design thickness | 8.51mm | |||||
design temperature | 500C | |||||
working temperature | -20~500C | |||||
Corrosion allowance | 1.0 mm | |||||
design pressure | 1.77 MPa | |||||
Hydraulic test pressure | 2.22MPa | |||||
leak test pressure | 1.77 MPa | |||||
Heat treatment type | Wholly get rid of tress | |||||
Main partsspecification | ||||||
Liquid level meter | Type | UZFAL-2.5FM | ||||
Model | Magnetic level gauge | |||||
Nominal pressure | PN2.5Mpa | |||||
Surveying range | 50~2300mm | |||||
Precision | 2.5Grade | |||||
Safe valve | Type | A42F-2.5-50 | ||||
Model | Inner full lift | |||||
Nominal pressure | PN2.5 MPa | |||||
Nominal diameter | DN50mm | |||||
Opening pressure | 1.68-1.76 MPa | |||||
Closing pressure | 1.51~1.59MPa | |||||
Complete opening pressure | <2.12 MPa | |||||
Loading and unloading device | Model | Quick tie-in | ||||
Nominal Diameter | Inlet Gas phase | DN50mm | ||||
Outlet gas phase | DN50mm | |||||
Drain outlet phase | DN50mm | |||||
Inlet Liquid phase | DN50mm | |||||
outlet Liquid phase | DN50mm | |||||
Pressure meter | YN-100T | |||||
Temperature gauge | WTQ-280 | |||||
Cut-off valve | J41N-40 | Normal pressure | PN2.5 MPa | |||
Normal diameter | DN50MM | |||||
DN32MM | ||||||
DN25MM | ||||||
DN20MM | ||||||
Safety valve of pipe | Type | A21F-25 | ||||
Normal pressure | PN2.5 MPa | |||||
Normal diameter | DN15MM | |||||
Security reflux valve | Type | AH42F-25 | ||||
Normal pressure | PN2.5 MPa | |||||
Normal diameter | DN25MM | |||||
Back pressure valve | Type | H42N-40 | ||||
Normal pressure | PN4 MPa | |||||
Normal diameter | DN50MM | |||||
Discharging pipe | Length | 4M | ||||
Normal diameter | DN50/DN25MM | |||||
Shock-absorbing pipe | Length | 500MM | ||||
Normal diameter | DN50MM | |||||
Flange | Normal pressure | PN2.5 MPa | ||||
Normal diameter | DN65MM | |||||
DN50MM | ||||||
DN32MM | ||||||
DN25MM | ||||||
DN15MM | ||||||
Lpg gas pump(YQB15-5) | Flow (m³/h) | 15.5 | ||||
Inlet pressure (MPa) | ≤2.0 | |||||
outletpressure difference (Mpa | 0.5 | |||||
Pump rotate speed (r/min) | 780 | |||||
motor power (KW) | 5.5 | |||||
Inlet aperture (mm) | 50 | |||||
Outlet aperture (mm) | 50 | |||||
Temperature rangeºC | -40~40 | |||||
Weight(kg) | 108 | |||||
Explosive-proof motor | 7.5HP(5.5KW), Explosive Proof, | |||||
Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | ||||||
LPG cylinder filling machine | Model | BSC-150 | ||||
Electricity voltage V | AC220 | |||||
Power(w) | 40 | |||||
Weighting scale | Can fill 0.5kg to 150kg LPG cylinde | |||||
Measurement Precision | ±0.5% | |||||
Rated Working Pressure | 1.6Mpa | |||||
Temperature rangeºC | -40~40 | |||||
Anti-explosion Rate | Exhibit II BT4 |
Truck picture:Application:
LPG truck is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.
